MRM 160 & 1200 Revolving Pedestal

MRM 160 & 1200 Lighhouse Light Revolving Pedestal



We have a long experience in designing lighting, rotating and monitoring equipment for major lighthouses.



The ideal support for a major lighthouse optic is one of our MRM revolving pedestals.

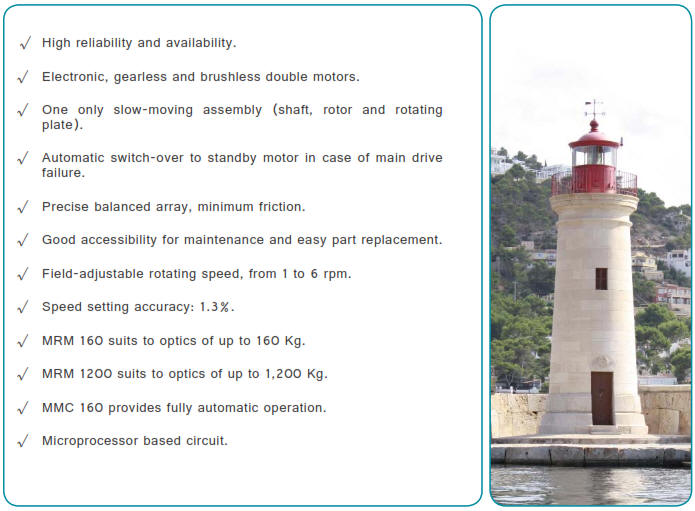

These motors are double, electronic, gearless and brushless.



The MRM motors are engineered to automate historic lighthouses, able to replace old drive machines and keep the valuable glass lens.

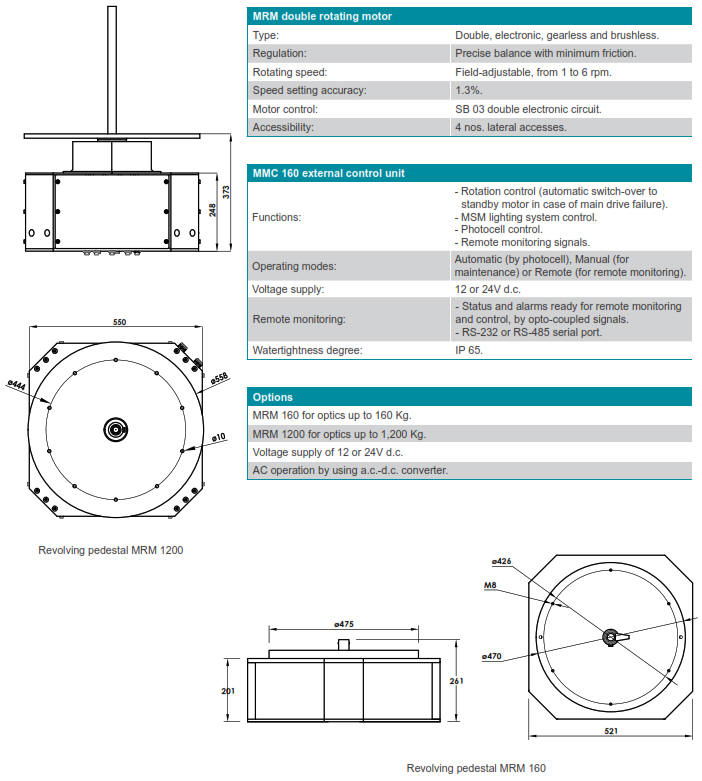

MRM 160 or MRM 1200 can be chosen depending on the lens weight.



The MRM support is tailor-made according to the lens height and the height from the lanternhouse inner base to the focal centre.



MRM 160 & 1200 Lighhouse Light Revolving Pedestal



MRM 160 & 1200 Lighhouse Light Revolving Pedestal
