Lifting Points

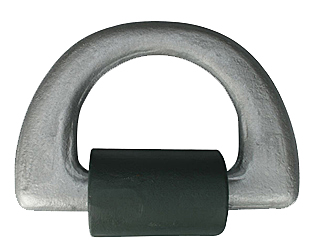

7.2 Metric Ton SWL Eye Lifting Point

7.2 Metric Ton Lifting Point Eye

PAL-C1-LIFT



Steel Eye Lifting Point with Welding Strap

7.2 Metric Ton Safe Working Load

15,840 Lbs. Safe Working Load



Calculations:

36 Metric Ton Breaking Load with 5:1 Safety Factor



Welding:

Safe and approved welding process is the responsibility of others.

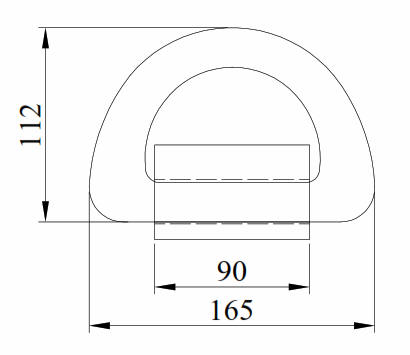

Drawing: PAL-C1-LIFT 7.2 Metric Ton SWL Eye Lifting Point



7.2 Metric Ton SWL Eye Lifting Point  7.2 Metric Ton SWL Eye Lifting Point



7.2 Metric Ton SWL Eye Lifting Point
