Lifting Points

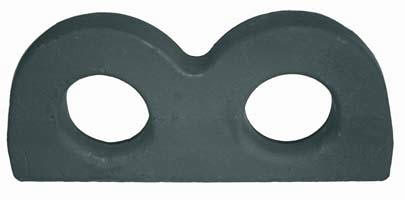

Fixed Double Lifting Eye

Fixed Double Lifting Eye - Lifting Ring

PAM-M2-LIFT



Steel Eye Lifting Point with Welding Strap

10 Metric Ton Safe Working Load

22,000 Lbs. Safe Working Load



Calculations:

50 Metric Ton Breaking Load with 5:1 Safety Factor



Welding:

Safe and approved welding process is the responsibility of others.

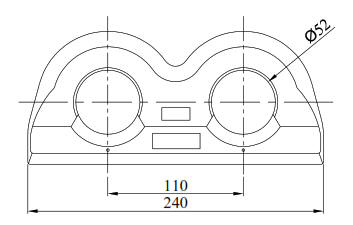

Drawing: PAM-M2-LIFT 10 Metric Ton SWL Eye Lifting Point



Fixed Double Lifting Eye  Fixed Double Lifting Eye
