Lifting Points

Aluminum Lifting Points and Pockets

Flush and Fixed

Flush Round Aluminum Lifting Poing

  Flush Round Aluminum Lifting Poing

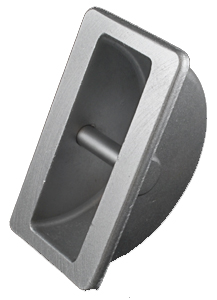

Flush Rectangular Aluminum Lifting Point

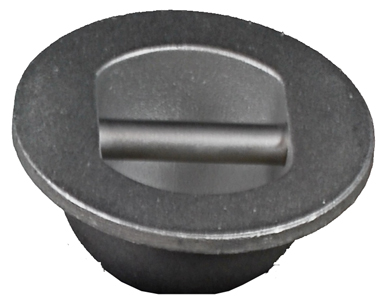

Flush Round Aluminum Lifting Point

Flush Round Aluminum Lifting Point

Flush Rectangular Aluminum Lifting Point

PTP25-SS-LIFT

PP40-SS-LIFT

PFR-064-15-LIFT

1200 lbs. Safe Working Load (5:1)

2000 lbs. Safe Working Load (5:1)

4150 lbs. Safe Working Load (5:1)

4.23 Inch Diameter

5.5 Inch Diameter

8.375 Inch Length x 4.750 Inch Width

   1/2 Inch Diameter Stainless Steel Pin

16mm Diameter Stainless Steel Pin

3/4 Inch Diameter Stainless Pin

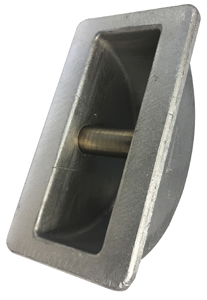

Flush Rectangular Aluminum Lifting Point

Flush Rectangular Aluminum Lifting Point

Flush Rectangular Aluminum Lifting Point

Flush Rectangular Aluminum Lifting Point

Flush Rectangular Aluminum Lifting Point

Flush Rectangular Aluminum Lifting Point

PFR-064-155-LIFT

PFR-064-155-HT-LIFT

PFR-064-12-LIFT

5,900 Lbs Safe Working Load (5:1)

7,400 lbs. Safe Working Load (5:1)

2,050 lbs. Safe Working Load (5:1)

8.375 Inch Length x 4.750 Inch Width

8.375 Inch Length x 4.750 Inch Width

6.58" x 6.05" Rectangular

1 Inch Diameter Stainless Pin

1 Inch Diameter Stainless Pin

5/8 Inch Stainless Steel Pin

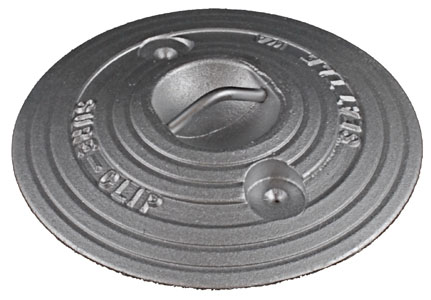

Round Aluminum Lifting Point

Fixed Aluminum Lifting Eye Point

HD Fixed Aluminum Lifting Eye Point

Round Aluminum Lifting Point

Fixed Aluminum Lifting Eye Point

HD Fixed Aluminum Lifting Eye Point

PSC-01-LIFT

PBE-02-LIFT

PBE-03-LIFT

7.5 Inch Diameter

1.75 Tall x 3.1 Inch Long

2 1/2 Tall x 3.88 Inch Long

1/4 Inch Pin

.75 Inch Diameter Eye

1.5 Inch Diameter Eye

1100 Lbs. Safe Working Load (5:1)

550 lbs. Theoretical SWL (5:1)

1700 Lbs. Theoretical SWL (5:1)



Fixed Double Aluminum Lifting Eye Point

Fixed Double Aluminum Lifting Eye Point

PBE-04-LIFT

2.5 Tall x 6.5 Inch Long

1.13 Inch Diameter Eyes



1720 Lbs. Theoretical SWL Each Eye (5:1)
