Utility Jib Crane - Davit Cranes

Model 5AFM

Portable, Fixed or Truck Mounted

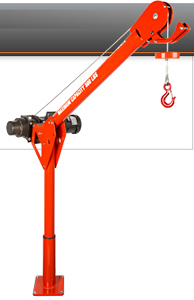

Utility Jib Crane - Davit Cranes

5AFM Davit Crane

Up to 500 lbs. Load
Up to 43.5 Inch Reach

Other Models Available: info@pacificmarine.net


Standard Davit Features

Available with AC, DC, pneumatic, hydraulic, and manual hoists

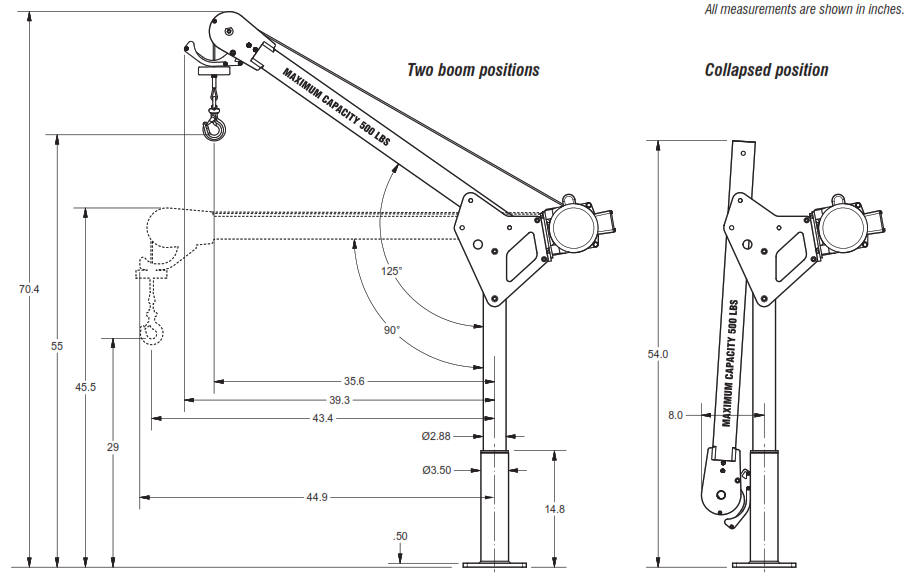

Two position boom for flexible operation

Collapsible design allows for storage or transport

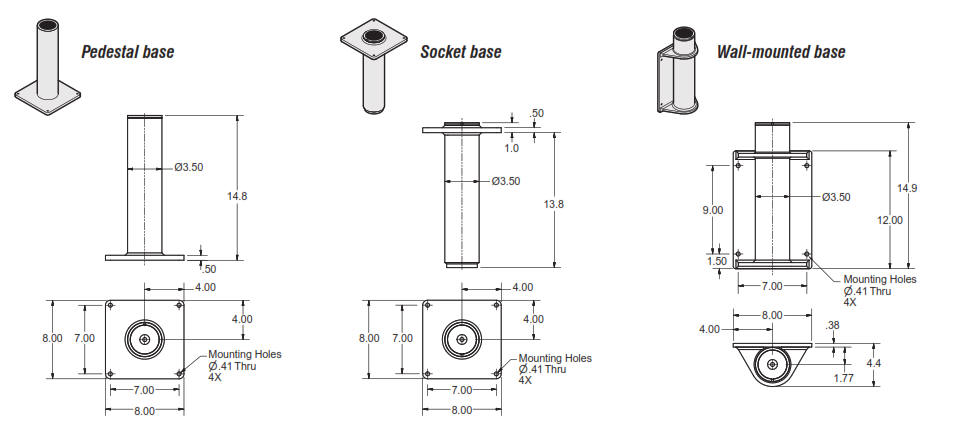

360º rotation in pedestal, socket or wall mounted bases

Top and bottom sleeve bearings in base allow for ease of rotation when under load

Powder coated frame and components

Stainless steel models available



Options

Swing handle

Upper limit switch

Overhaul plate

Rotary limit switch with adjustable lower limit

Weather resistant coatings and hardware

Additional features and upgrades available upon request


davit crane 5AFM

davit crane 5AFM
